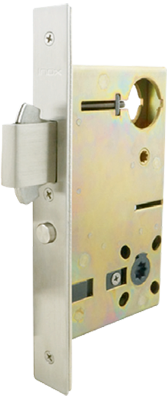

PD96_LockCase_B_trans

PD900 Series

Self-Latching, Auto-Locking Sliding Door Mortise Lock

The first sliding door lock capable of all major commercial functions usually available only with swing door locks, enabling architects and designers access to more space planning options and wider access points.

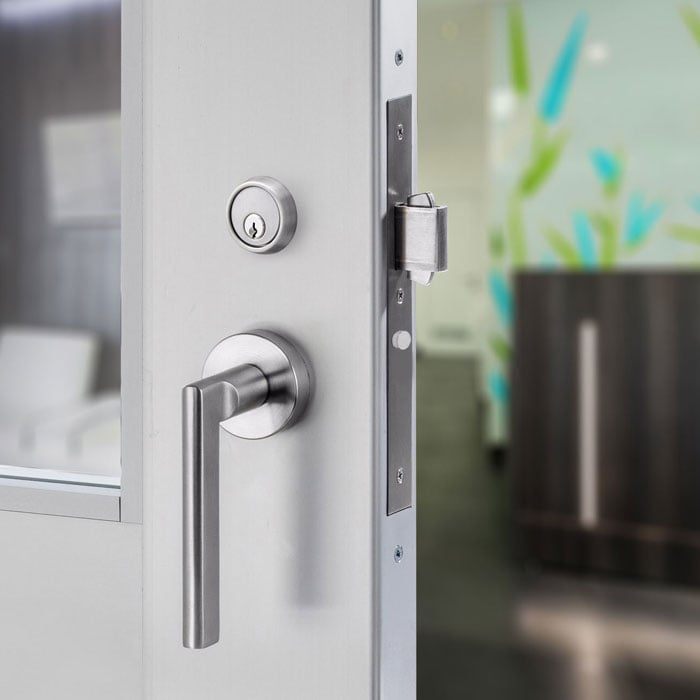

PD96__healthcare_glamour_600

Features

INOX PD96 is a commercial grade lock with a built-in mechanical auto-latching/auto-locking functions. The PD96 provides a one-product solution for projects that require multiple functions.

  • Hospitality
  • Healthcare
  • Commercial
  • Office
  • Residential
PD96_latchbolt

Contact with the strike activates the winged latchbolt for auto-latching. Meets UL standards for access to controlled substances.

PD96_latchbolt

This is here just as example of a page with two callouts.

line drawing 3D rendering exploded view

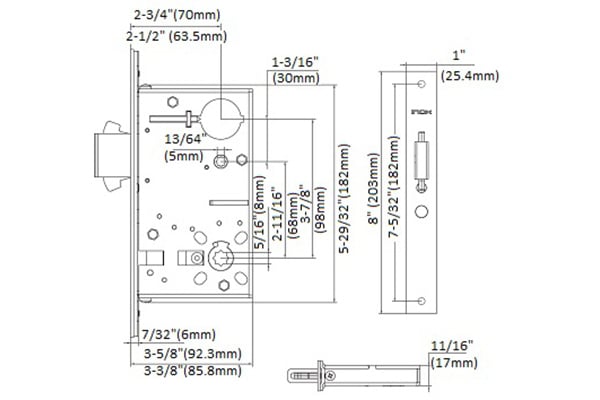

PD96 line drawing

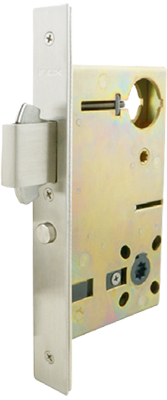

PD96_LockCase_B_trans

Exploded View appears here

Specifications

Standard Door Thickness: 1-3/4" (45mm) (TDKs available)
Backset: 2-3/4" (70mm) and 2-1/2" (64mm)
Thumbturn Spindle: 5x5mm square
Bolt: 1" (25.4mm)
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 8"x3-3/8"x11/16" (203mm x 85.8mm x 17mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Handing: Specify handing for Privacy function
Lockcase: Field reversible without disassembly
Cylinder: Schlage C key-way 6 pin mortise with 2 keys
